This curler liner for pail ends is an automatic can end production machine designed for precise forming of can ends with high productivity and consistent quality.
Additional information
| Weight | 850 kg |
|---|---|
| Dimensions | 1550 × 725 × 1350 mm |
| End diameter | Up to Ø320 mm |
| Speed | Up to 50 ends per min |
| Power | 1.1 Kw |
| Machine dimensions | 1550 x 725 x 1350 mm |
| Weight | 850 kg |
Description

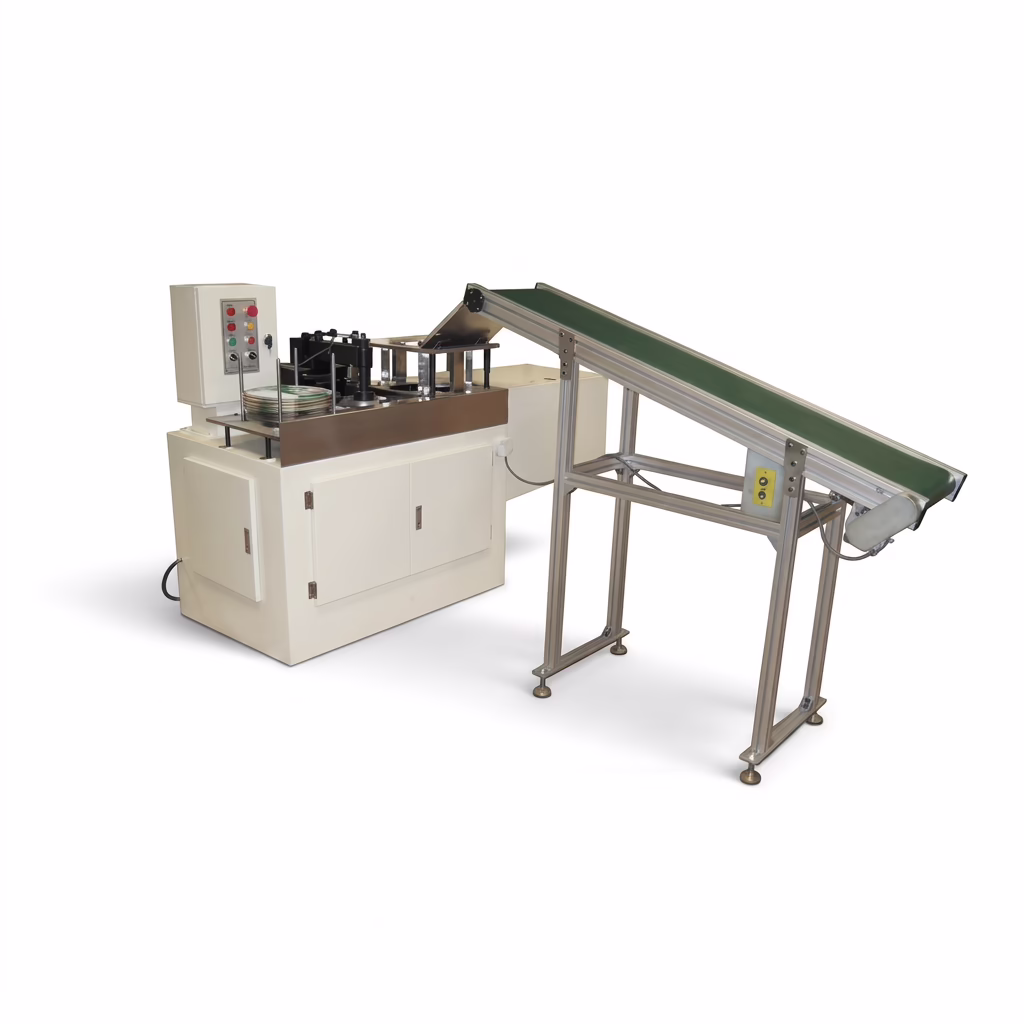

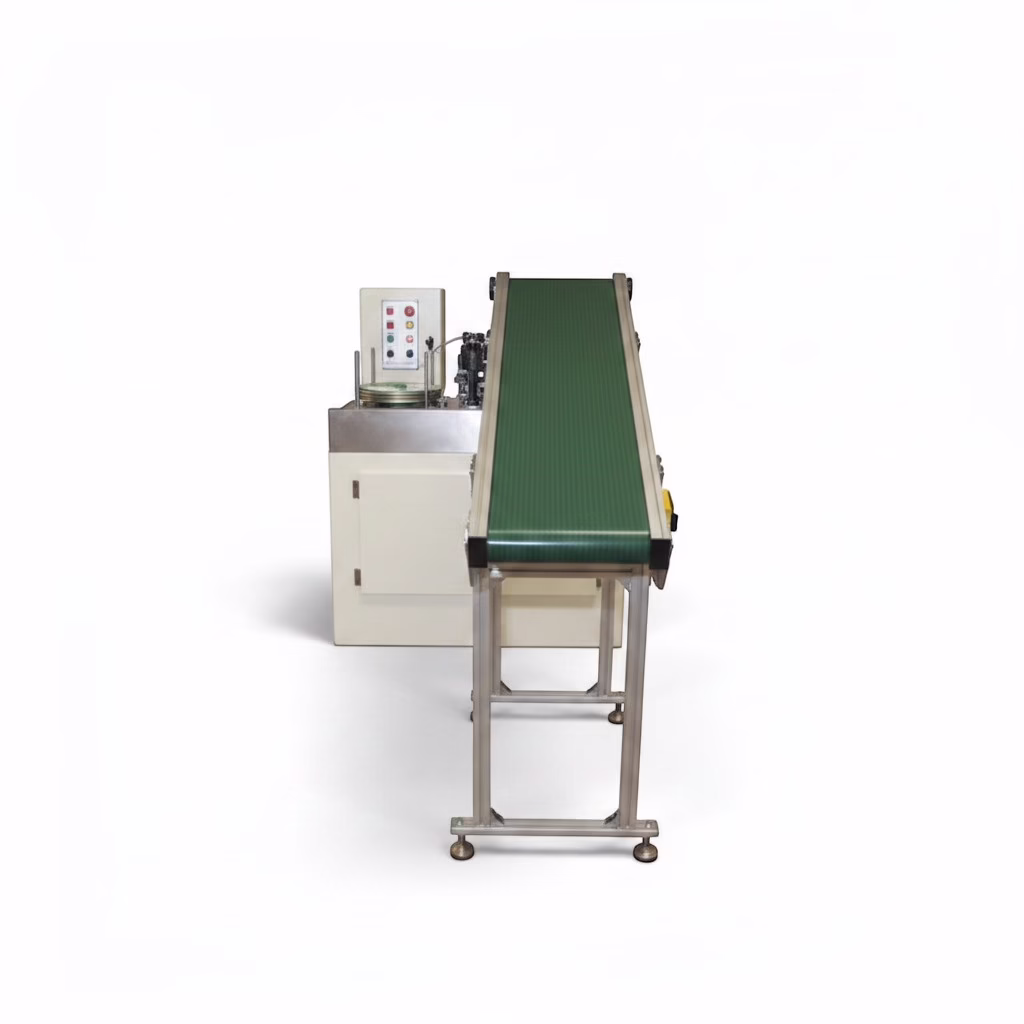

PROend CLP – Automatic curler liner for pail ends
The PROend CLP is a fully automatic can end production machine designed for high-speed manufacturing of metal can ends. The machine provides precise forming, reliable operation, and consistent product quality. Efficient production performance and accurate tooling control ensure dependable manufacturing results.
Automatic curler liner, pail ends
End diameter: Up to 320 mm
Speed: Up to 50 Ends per min.
Power: 1,1 Kw
Dimensions: 1550 x 725 x 1350 mm
Weight: 850 Kgs
Can End Manufacturing
What equipment is required?Job Folbert2026-08-06T22:42:16+02:00
Presses, forming machines, lining systems, and dryers. Together these produce the end, apply the sealing compound, and cure it so the end is ready to be seamed onto a can body.
Can PROCAN supply complete end lines?Job Folbert2026-08-06T22:42:16+02:00
Yes. PROCAN can supply complete end lines, in the same way as complete can body lines. A line can be delivered as a turnkey project or built up from individual machines and modules.
Can easy-open ends be produced?Job Folbert2026-08-06T22:42:16+02:00
Depending on configuration. Whether easy-open ends can be produced follows from how the press and forming equipment are configured for the customer’s product requirements.
Can multiple end sizes be produced?Job Folbert2026-08-06T22:42:17+02:00
Yes. Multiple end sizes can be produced. End sizes are changed through tooling changes, and additional tooling can usually be supplied when a new size is required.
How are end sizes changed?Job Folbert2026-08-06T22:42:17+02:00
Through tooling changes. Changing to a different end size means fitting the tooling for that size, and additional tooling can usually be supplied for formats added later.
What is the function of lining?Job Folbert2026-08-06T22:42:17+02:00
To ensure proper sealing. The lining applies the sealing compound to the end, which is then dried so that the end seals correctly when it is seamed onto the can body.
Why is drying required?Job Folbert2026-08-06T22:42:17+02:00
To cure the sealing compound. Drying follows the lining stage, so that the compound applied to the end is properly cured before that end is seamed onto a can body.
What affects end quality?Job Folbert2026-08-06T22:42:17+02:00
Tooling condition and process control. As with the other stages of the line, the condition of the tooling and the consistency of the process settings determine the quality of the finished end.
Can production be automated?Job Folbert2026-08-06T22:42:17+02:00
Yes. Can end production can be automated. The level of automation is one of the specifications defined during project planning, and it also affects the number of operators the line requires.
Can existing lines be upgraded?Job Folbert2026-08-06T22:42:17+02:00
Yes. Existing end lines can be upgraded. As with other PROCAN equipment, feasibility depends on machine condition and requirements, and an upgrade can cover controls, formats, safety systems, or automation.
